LEVEL Series · Three-Phase Hybrid

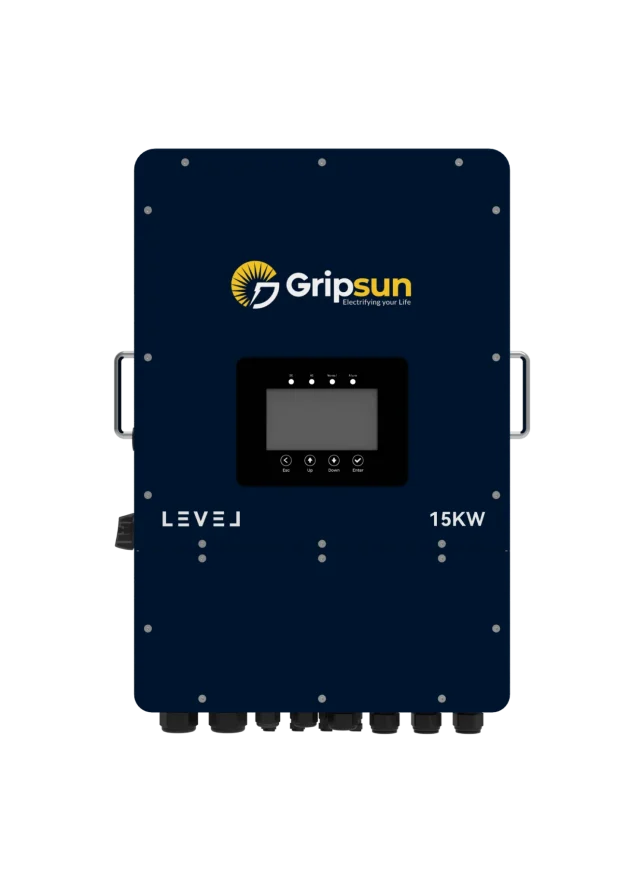

LEVEL 15kW Low Voltage Three Phase Hybrid Inverter (GS-LV-15K-3P)
One box between your solar, battery, and grid, keeping the loads that can’t go dark running through every outage. The largest of the LEVEL three-phase range, sized for big villas, farms, and commercial sites.
- Solar, battery, grid, and generator in one unit
- Two MPP trackers with 2 + 2 PV inputs
- WiFi monitoring with built-in LCD display
- UPS-level switchover keeps critical loads on
Rated output
15 kW
Peak efficiency
97.6%
Transfer time
< 6 ms
Max charge current
290 A
Ingress rating
IP65
Warranty
10 yr
Product advantage
Built for a three-phase supply that comes and goes
Flexible adaptability
- On-chip intelligent and dynamic load management
- LCD display for real-time monitoring
- UPS-level transfer time, under 6 ms
High performance
- Up to 160% PV overloading capability
- Up to 200% EPS power output for 60 seconds
- Maximum charge / discharge current of 290 A
Safe and secure
- IP65 protection rating
- Intelligent terminal temperature detection
- AC/DC side equipped with Type II SPDs
- AFCI (optional)
Efficient management
- Supports parallel connection of up to 10 units
- Multiple control modes to meet diverse needs
- Compatible with diesel generators
- Maximum MPPT current of 30 A
Headroom where it matters
Oversize the PV array, ride through motor start-ups, and scale up to ten units in parallel as loads grow.
160%
Max PV input oversizing
200%
EPS surge output for 60 s
× 10
Units in parallel operation
Certifications and safety
Tested, certified, and protected
Safety certification
IEC 62109 · IEC 61000
Grid certification
EN 50549-1/10 · IEC 61683 · IEC 61727 · IEC 62116
Over-voltage category
PV: II · Mains: III
10 year product warranty (5 + 5), terms apply
Type II surge protection
SPDs on both AC and DC sides
IP65 enclosure
Sealed against dust and water
Arc-fault and anti-islanding
AFCI with island protection monitoring
Ground-fault monitoring
Continuous earth fault detection
Application scenarios
Where it gets installed
Households
Large villas
Supermarkets
Shopping malls
Small farms
Studios
Critical load backup
Areas with unstable grids
Product parameters
Technical specifications
Datasheet values for GS-LV-15K-3P. Also available: GS-LV-12K-3P, the 12 kW model.
PV input
Grid side
Battery side
Back-up (EPS)
Efficiency
General data
Integrated protection
Resources and support
Documentation and support
LEVEL Series datasheet
PDF · English · LEVEL-12KW-15KW-3P.pdf
Questions about the LEVEL Series?
Gripsun engineers and the nationwide service network are a call away.
