Gripsun VELOCITY Series 16kWh low voltage lithium battery: 5 years warranty, fire suppression, 200A max discharge, 8000 cycle life, LiFePO4 cells, parallel up to 15 units

VELOCITY Series · Low Voltage Lithium Battery

VELOCITY 16kWh Low Voltage Lithium Battery (G-16000)

One floor-standing cabinet holding 16 kWh of LiFePO4 storage, enough to carry a large home or a working business through hours of load-shedding. Rated for 8000 cycles, and it scales to fifteen cabinets when the site grows.

  • 16 kWh in a single cabinet, no stacking
  • LiFePO4 cells rated for 8000+ charge cycles
  • Aerosol fire suppression built in
  • Fits the 40 to 60 V input of LEVEL hybrid inverters

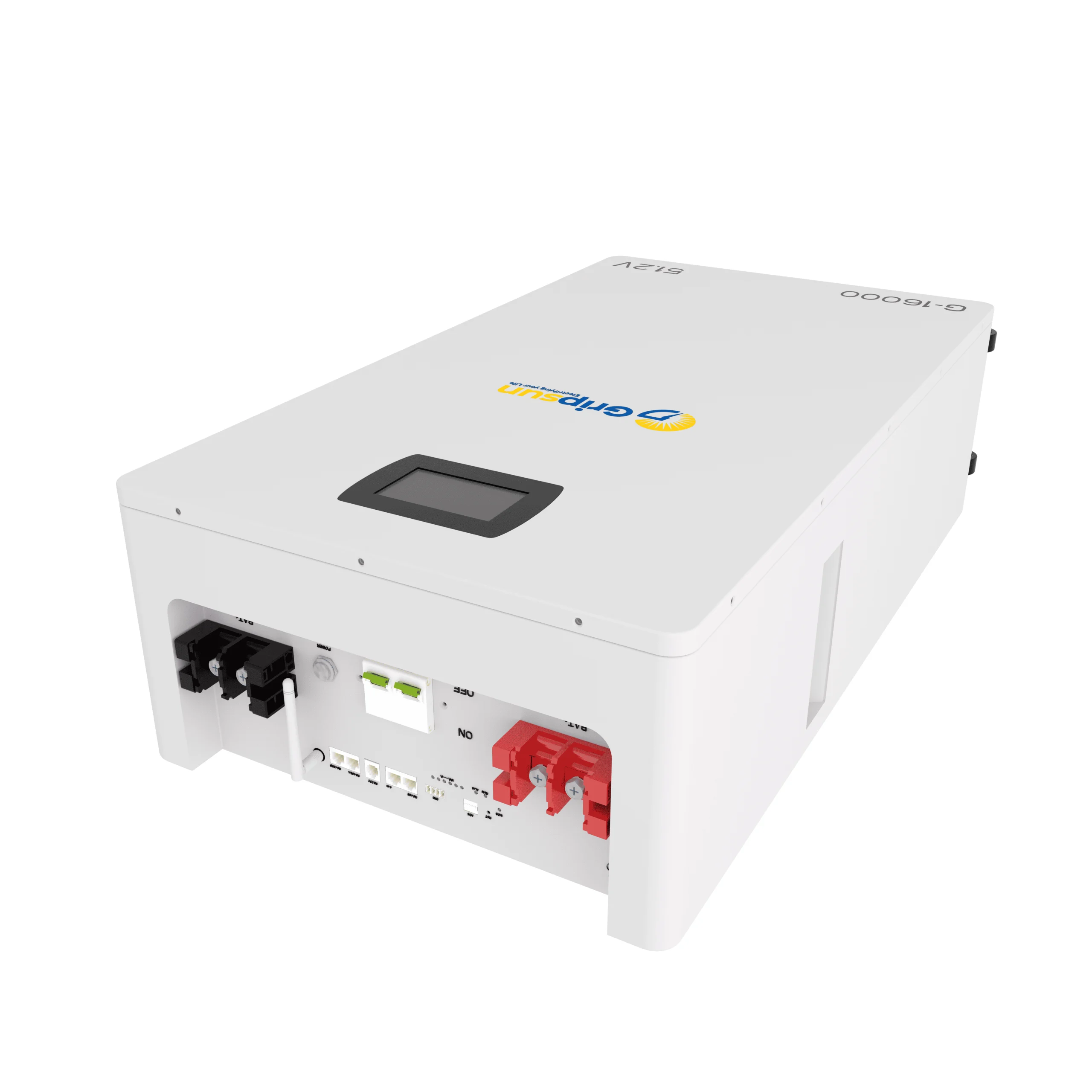

Gripsun VELOCITY G-16000 16 kWh low voltage lithium battery, front view

Battery energy

16 kWh

Nominal voltage

51.2 V

Cycle life

8000+

Max current

200 A

Parallel units

× 15

Warranty

5 yr

Product highlights

Built for sites where the power cannot stop

Flexible expansion

Up to 15 cabinets in parallel, respond flexibly to demand.

Easy installation

Floor-standing cabinet, clean enough for the front office.

Performance

200 A continuous charge and discharge, 230 A peak, fast charging.

Convenient control

Built-in 4.3 inch capacitive touchscreen showing full battery status.

Safety

Aerosol fire suppression on board, IP20 rated for indoor rooms.

Long-term reliability

LFP cells, 8000+ cycles with SOH of 80% or better, 5 year warranty.

Product gallery

A closer look

Gripsun VELOCITY G-16000 battery cabinet, front view on casters VELOCITY G-16000 battery cabinet, three quarter view with carry handle VELOCITY G-16000 cabinet at an angle showing the touchscreen and terminals VELOCITY G-16000 cabinet laid flat showing the terminal side VELOCITY G-16000 connection panel with battery terminals, breaker, and communication ports

Headroom for heavier loads

Sixteen kilowatt hours per cabinet, 10.24 kW of continuous power, and room to grow to a 241 kWh bank.

241 kWhMax storage with 15 cabinets
230 APeak discharge current
8000+Charge cycles at 80% DOD

System sizing

How much backup do you need?

VELOCITY cabinets in parallel2 of 15
151015
30.5 kWh
32.15 kWh installed · 95% depth of discharge
31 hLights and essentials, 1 kW
15.3 hShop or office, 2 kW
6.1 hHeavy commercial load, 5 kW
Estimates for sizing only, at nominal capacity and steady load. Confirm the fit with our technical team.

Certifications and safety

Tested, certified, and protected

Product certification

CE · MSDS

Transport certification

UN 38.3

Cell technology

LiFePO4 · Lithium Iron Phosphate

5YEARSWARRANTY5 YEARS · T&C APPLIED

5 year product warranty, terms apply

LiFePO4 chemistry

Stable, cobalt free cells

Aerosol fire suppression

Built-in extinguishing system in the cabinet

IP20 indoor enclosure

For clean, conditioned indoor spaces

RS485 and CAN on board

Talks directly to the hybrid inverter

Application scenarios

Suitable for

Large villas Shops and retail Offices Clinics Schools Petrol stations Small industry Critical load backup

System pairing

Works with the LEVEL inverter range

Gripsun LEVEL 12 kW three phase hybrid inverterLEVEL 12kW Three PhaseGS-LV-12K-3P · hybrid inverter · 250 A battery currentView product Gripsun LEVEL 15 kW three phase hybrid inverterLEVEL 15kW Three PhaseGS-LV-15K-3P · hybrid inverter · 290 A battery currentView product

The G-16000 fits any inverter with a 40 to 60 V battery input. For smaller sites, see the FALCON 5.12 kWh wall battery.

Product parameters

Technical specifications

Datasheet values for G-16000. Fits the 40 to 60 V battery input of the Gripsun LEVEL hybrid inverters.

General

Nominal voltage51.2 V
Nominal capacity314 Ah
Battery energy16,076 Wh
Depth of discharge95%
Cell technologyLiFePO4
Charge / discharge power10,240 W

Charge and discharge

Charge voltage57.6 V
Discharge voltage44.8 V
Recommended current150 A
Maximum current200 A
Peak current230 A

Control and communication

DisplaySOC and LED indicator
WiFi moduleBuilt-in, with app
CommunicationRS485, CAN

Mechanical

Dimensions460 × 240 × 820 mm
Net weight125 kg
InstallationFloor-standing
IP ratingIP20, indoor
CoolingForced air
Fire protectionAerosol extinguishing

Environment

Charging temperature0 ~ 55 °C
Discharge temperature−20 ~ 55 °C
Operating humidity≤ 95% RH
Max altitude≤ 3000 m

Lifetime and compliance

Cycle life8000 @ 80% DOD, 0.5C
Scalability15 in parallel
CertificationCE, MSDS, UN 38.3
Warranty5 years, terms apply

Good to know

Common questions

Can I start with one cabinet and add more later?

Yes. Up to 15 VELOCITY cabinets run in parallel, so a site can start at 16 kWh and grow to 241 kWh without replacing anything already installed.

How long will the battery last?

The cells are rated for 8000 cycles at 80% depth of discharge. That is more than 20 years of one full cycle per day, and the unit carries a 5 year warranty.

Is it safe to keep indoors?

Yes, in a clean and conditioned space. The chemistry is stable LiFePO4, and the cabinet has a built-in aerosol fire extinguishing system with continuous BMS monitoring over RS485 and CAN.

Which inverters does it pair with?

Any inverter with a 40 to 60 V battery input, including the Gripsun LEVEL hybrid range. Our technical team confirms sizing and settings for your site before installation.

Resources and support

Documentation and support

Datasheet

VELOCITY Series datasheet

PDF · English · 0.8 MB

Download datasheet

Support

Questions about the VELOCITY battery?

Gripsun engineers and the nationwide service network are a call away. Ask about sizing, inverter pairing, or installation.

Contact usService centers
